// 14/06/2026 // by Elder0010

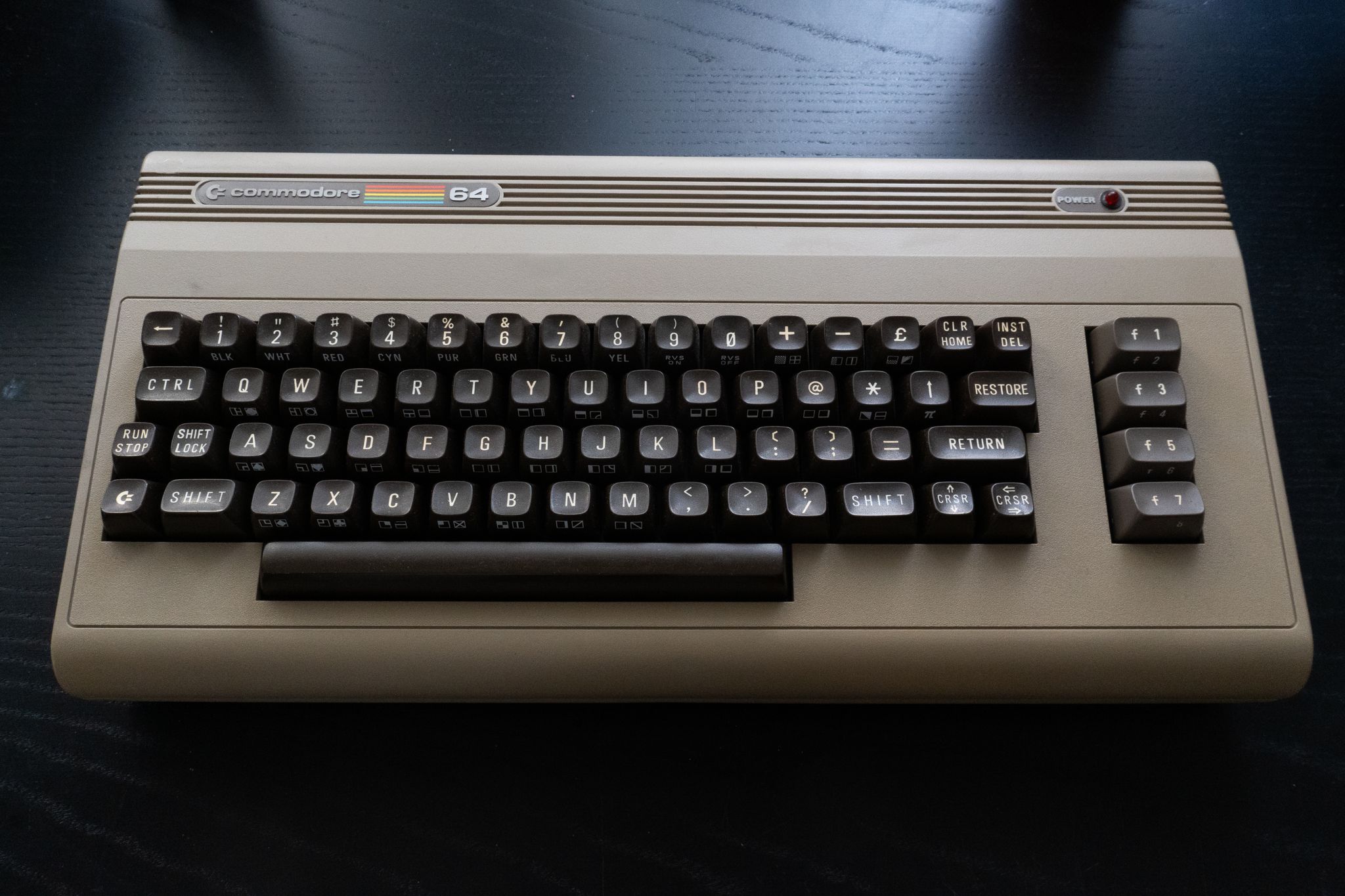

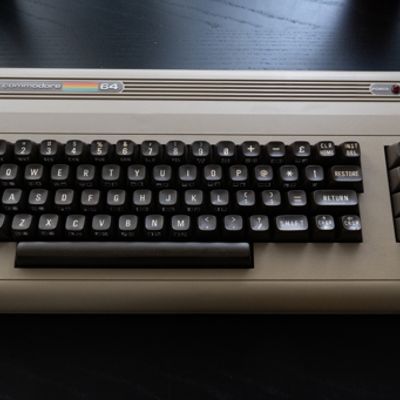

Commodore C64

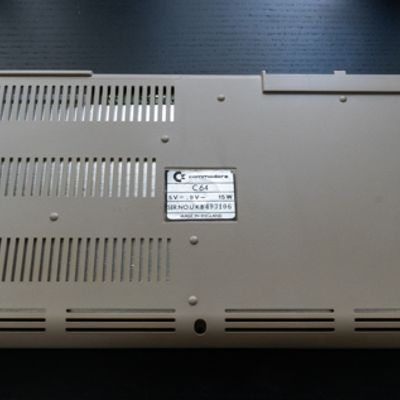

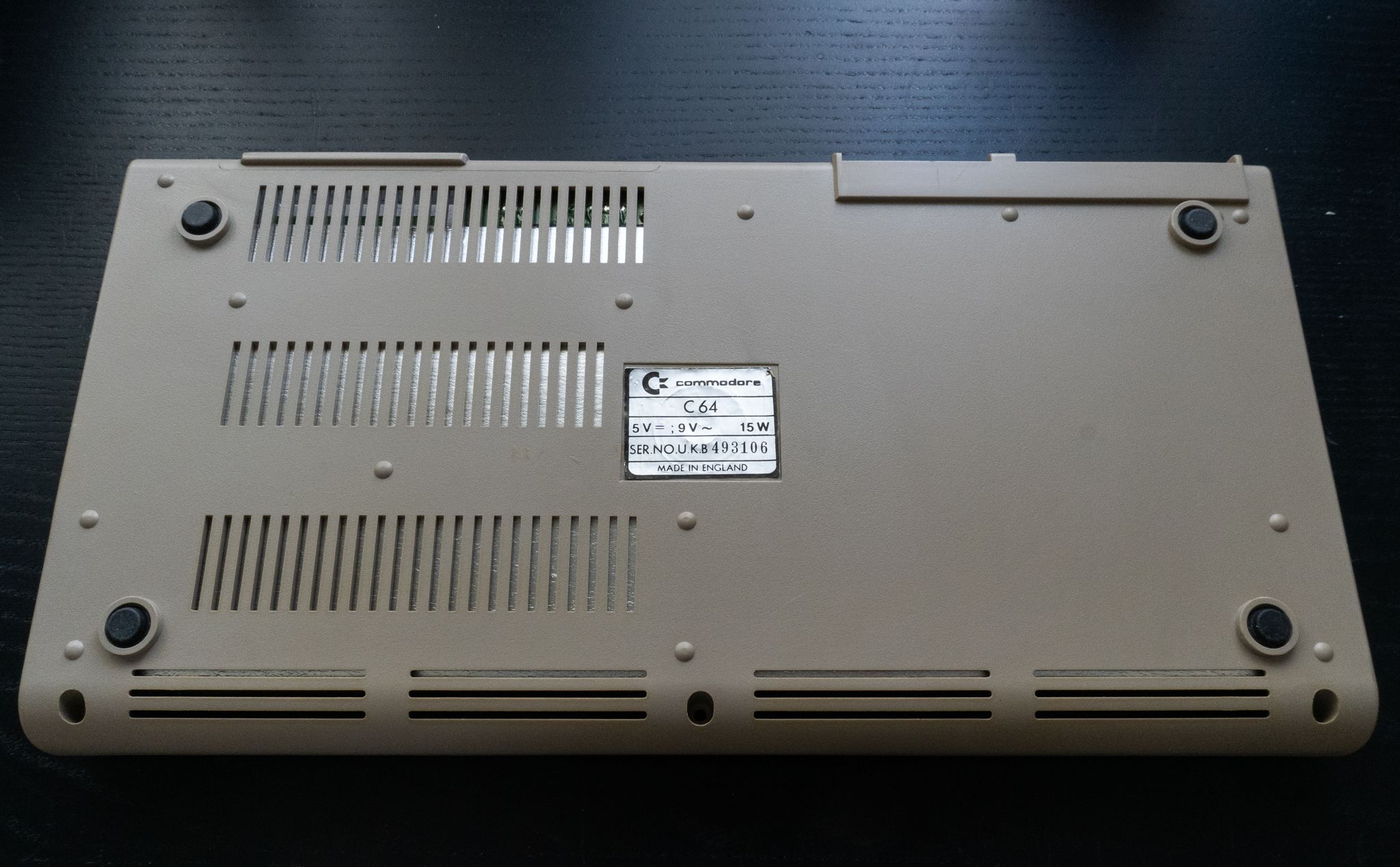

- Serial number: UKB493106
- Source: Donation (board) / spare case
- Functional at recovery time: No
- Functional: Yes
Machine info

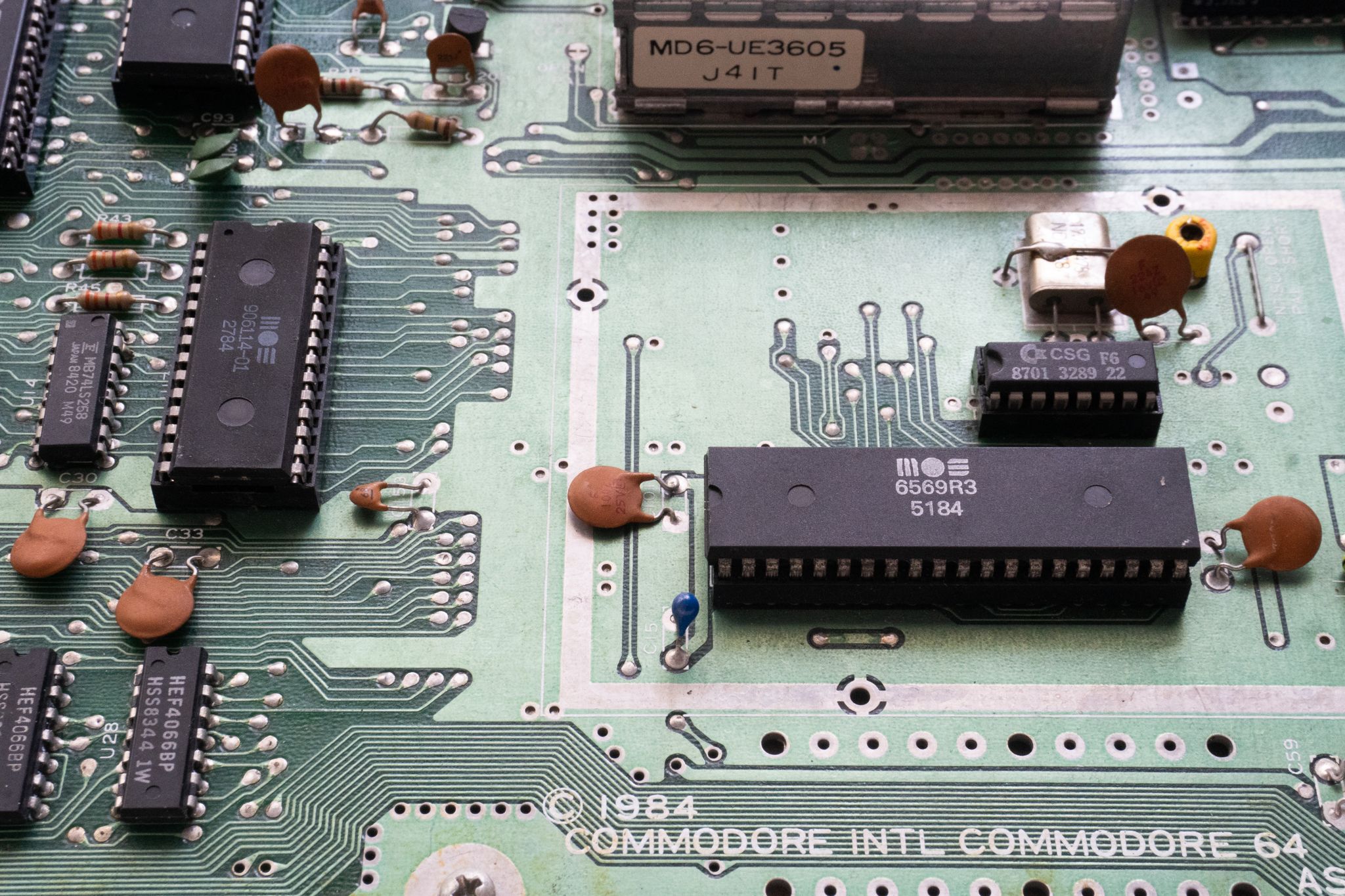

This machine has been assembled using a non functional board. 3 of
the usual mT rams has been found dead, the SID was missing and one of
the 74LS257 had a bad socket - I replaced it.
Repair history
- Faults: black screen, no sound
- Added missing MOS 6581 SID
- Replaced socket of 74LS257 (U25)
- Replaced 3X 4164 (U21, U22, U23)

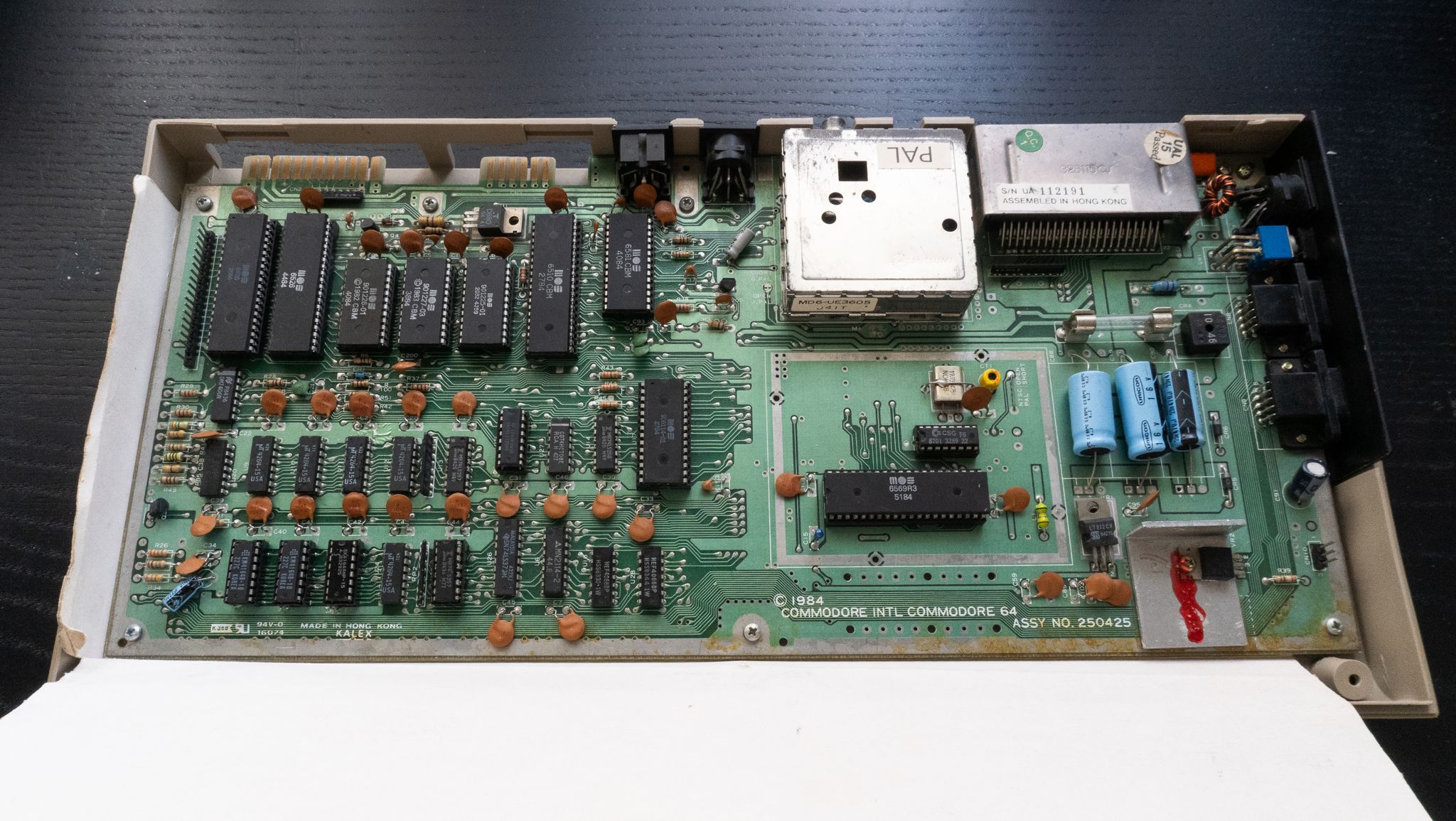

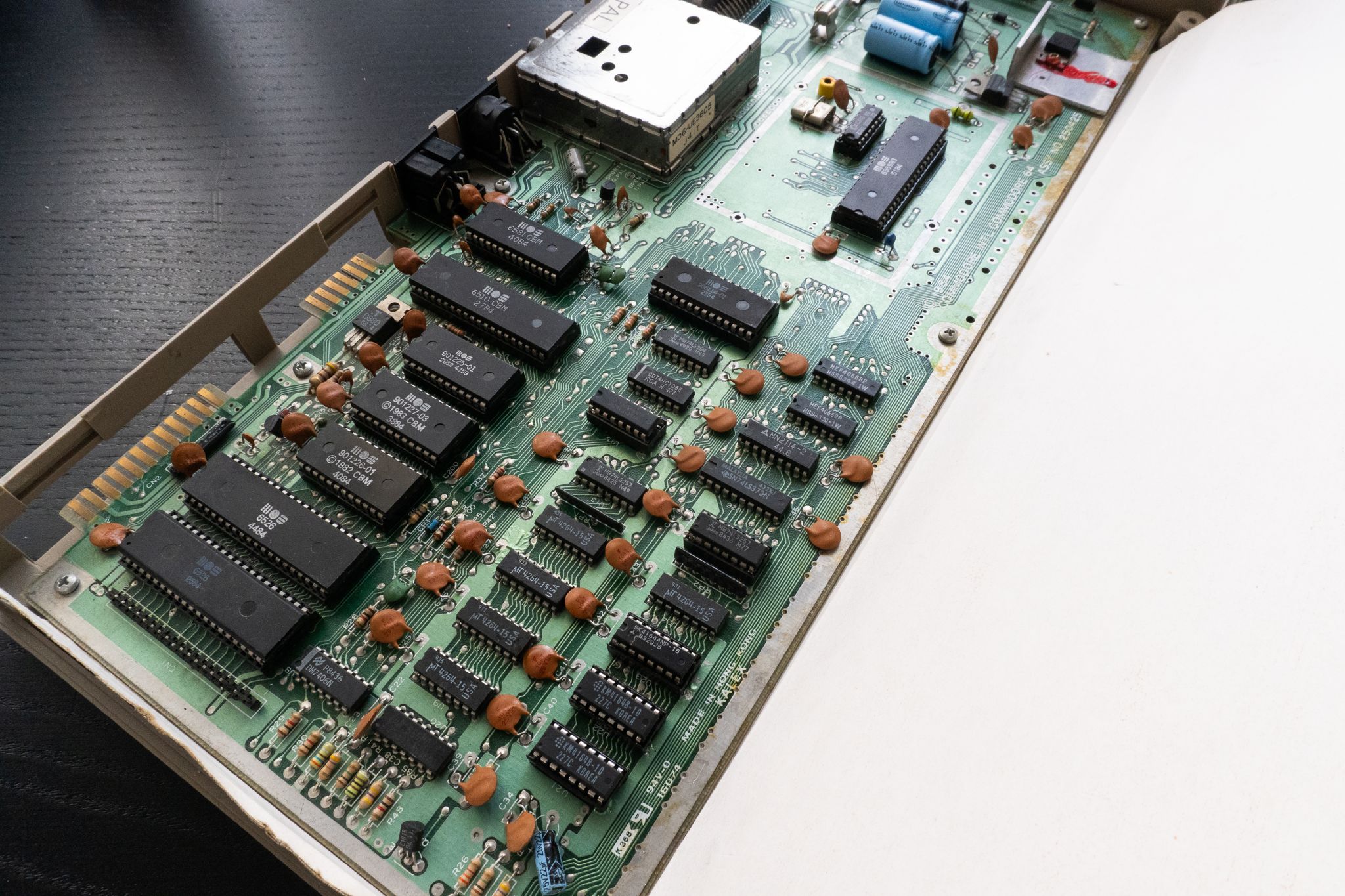

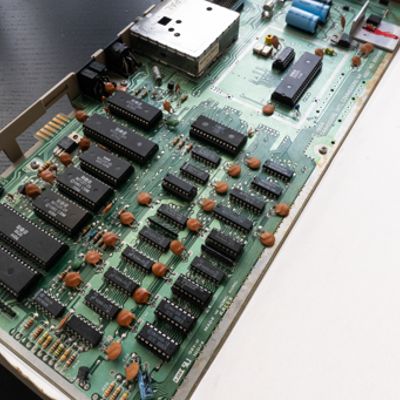

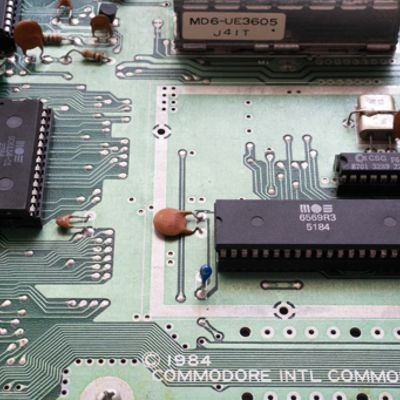

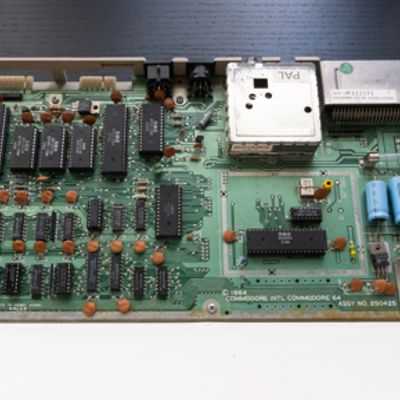

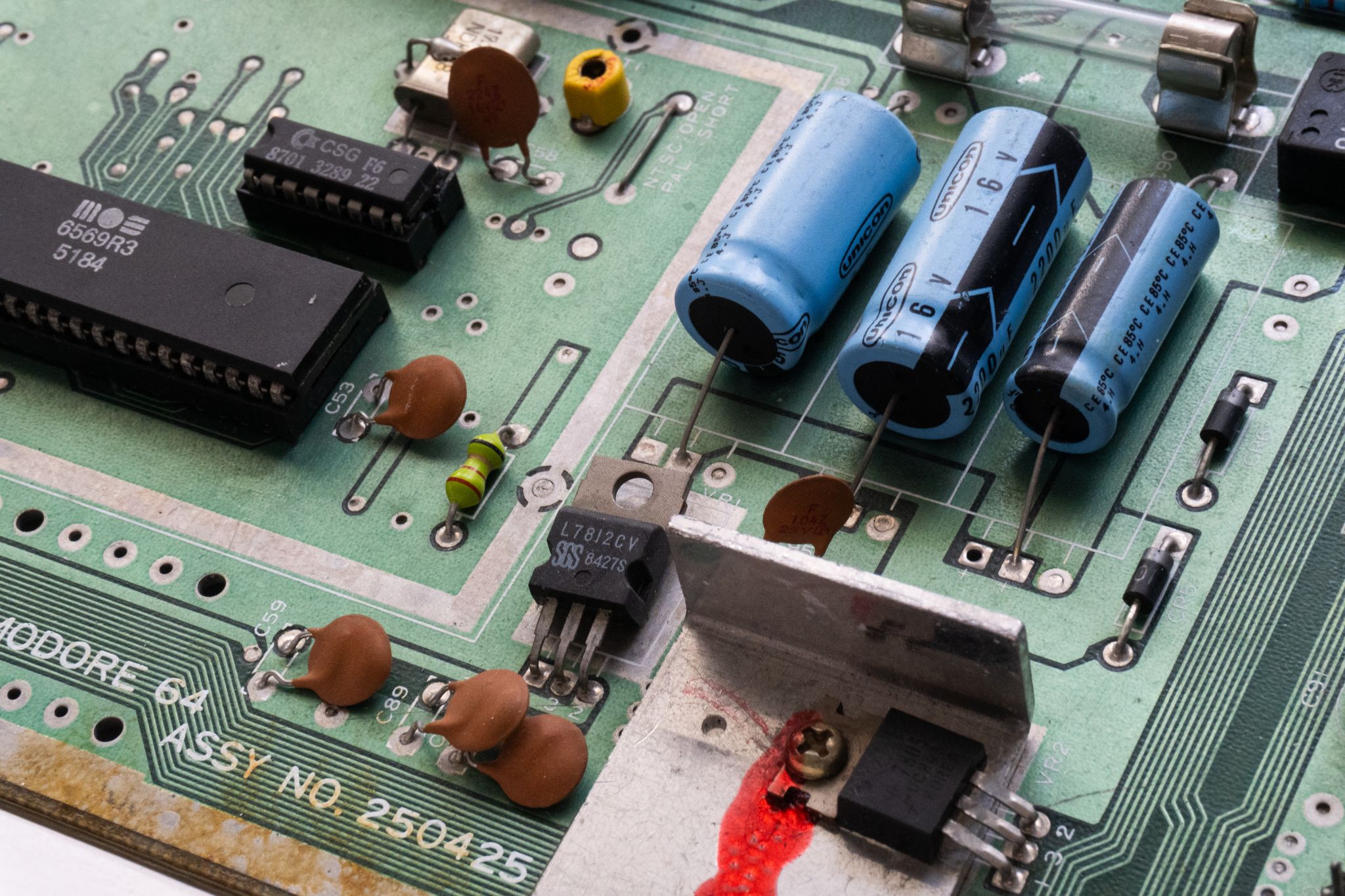

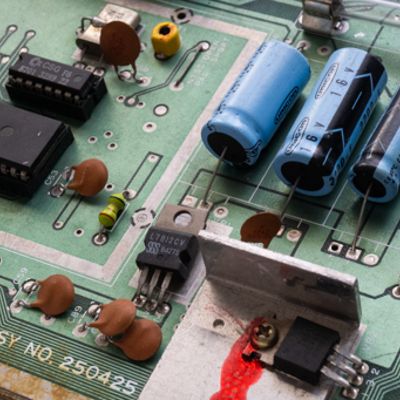

Gallery
